WireGuard overlay network for Docker containers

How to connect Docker containers across multiple hosts using WireGuard

Connect Docker containers across multiple hosts with WireGuard

You have Docker containers running on different Linux machines. You want container A on one machine to talk directly to container B on another machine using their private IPs. For example, to run your application and database containers on separate machines without exposing them publicly. Here's how you can use pure WireGuard and some networking tricks to make this work.

I implemented this technique to enable cross-machine container communication in Uncloud, an open source clustering and deployment tool for Docker.

What we're building
Prequisites
Step 1: Configure Docker networks
Step 2: Connect Docker networks with WireGuard
Step 3: Configure IP routing
Step 4: Testing
Step 5: Make the configuration persistent
Scaling beyond two machines and limitations
Automating with Uncloud
Alternative solutions
Conclusion

What we're building

Docker containers are typically connected to a bridge network on their host machine, which allows them to communicate with each other. A bridge network also provides isolation from containers not connected to it and other networks on the host. What we want to achieve is to connect these bridge networks across machines so that containers on different machines can communicate as if they were connected to the same local bridge network.

The incantation we need is called a site-to-site VPN. Any solution would work. Moreover, if the machines are on the same local network, they're already connected and only miss the appropriate routing configuration. But I'll describe a more versatile approach that works even when the machines are on different continents or behind NAT. WireGuard is the ideal solution for this use case: it's lightweight, fast, simple to configure, provides strong security and NAT traversal.

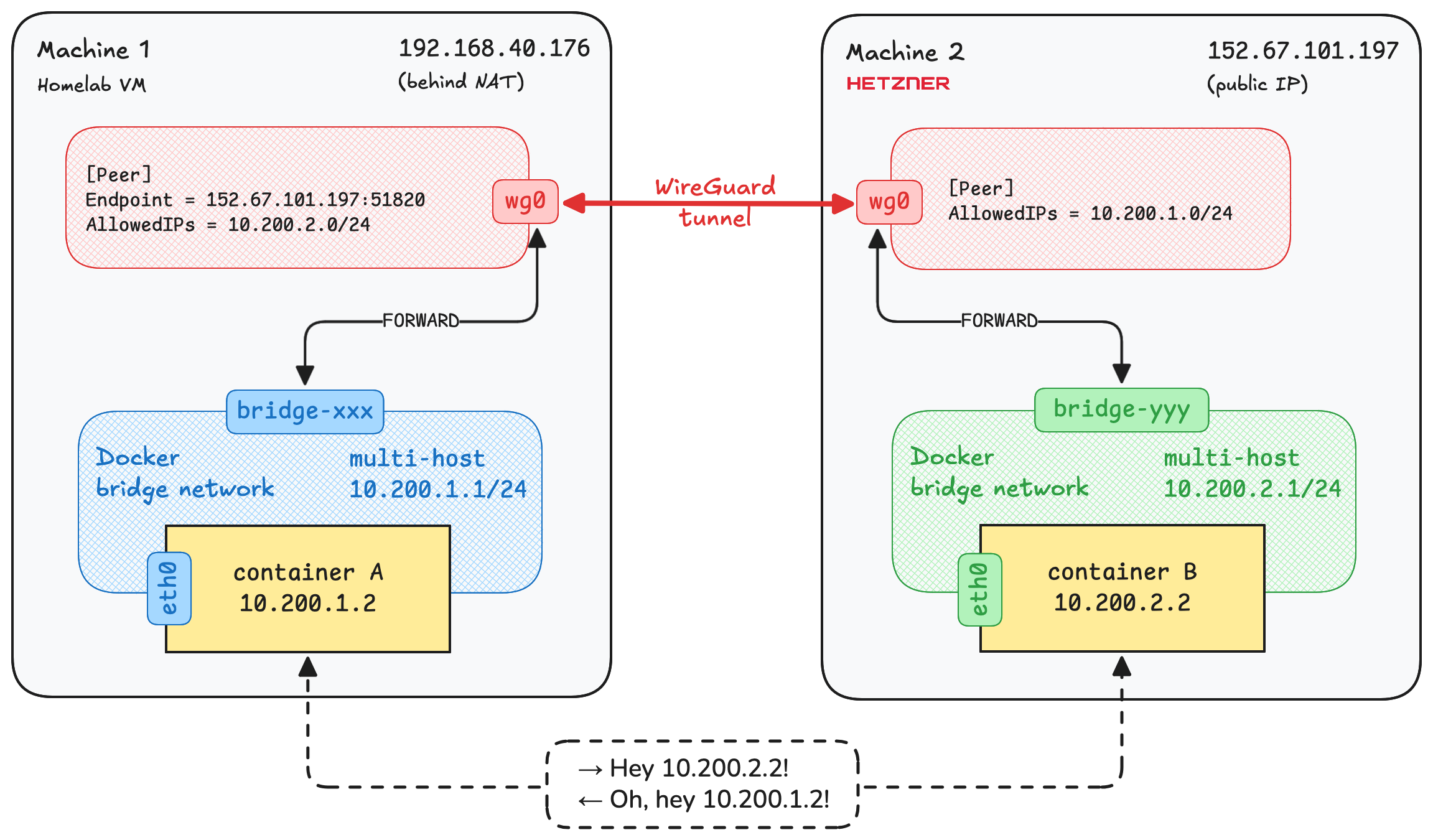

We'll create a new Docker bridge network multi-host on each machine with unique subnets. Then establish a secure WireGuard tunnel between the machines and configure IP routing so that multi-host bridge networks become routable via the tunnel. Finally, we'll run containers on each machine connected to the multi-host network and test that they can communicate with each other using their private IPs.

I will use these two machines:

Machine 1: Debian 12 virtual machine in my homelab network in Australia which is behind NAT
Machine 2: Ubuntu 24.04 server from Hetzner in Finland that has a public IP

Prerequisites

Basic knowledge of Docker networking and WireGuard. If you're new to these topics, you might want to read up on them first.
At least two Linux machines with root access and Docker installed. They should be on the same network or reachable over the internet.

Step 1: Configure Docker networks

Most of the commands in this guide require root privileges. You can run them with sudo or log in as root. I'll start root shells on both machines with sudo -i for convenience.

We can't connect the default Docker bridge networks across machines because they use the same subnet (172.17.0.0/16 by default). We need them to have non-overlapping addresses so that we can set up routing between them later.

Therefore, let's create new Docker bridge networks on each machine with manually specified unique subnets. You can choose any subnets from the private IPv4 address ranges that do not overlap with each other or with your existing networks. I'll use 10.200.1.0/24 and 10.200.2.0/24 for Machine 1 and Machine 2 respectively. They don't even need to be sequential or be part of the same larger network. However, using a common parent network (like 10.200.0.0/16 in my case) can simplify firewall rules and make it easier to manage more machines later.

You can use any name for the Docker networks. I'll call them multi-host for clarity.

# Machine 1
docker network create --subnet 10.200.1.0/24 -o com.docker.network.bridge.trusted_host_interfaces="wg0" multi-host
# Machine 2
docker network create --subnet 10.200.2.0/24 -o com.docker.network.bridge.trusted_host_interfaces="wg0" multi-host

Starting with Docker 28.2.0 (PR), you have to explicitly specify from which host interfaces you allow direct routing to containers in bridge networks. This is done by specifying the com.docker.network.bridge.trusted_host_interfaces option when creating the network. In our case, we want to allow routing via the WireGuard interface wg0 that we be created in the next step.

Provide this option even if you're using an older Docker version as it'll be required if you upgrade Docker in the future.

Step 2: Connect Docker networks with WireGuard

By default, WireGuard uses the UDP port 51280 for communication. To establish a tunnel, at least one of the machines need to be able to reach the other's port over the internet or local network. Please make sure it's not blocked by a firewall on both machines.

For example, when using iptables, you can allow incoming UDP traffic on port 51820 with the following command:

iptables -I INPUT -p udp --dport 51820 -j ACCEPT

Install WireGuard utilities and generate key pairs on both machines:

apt update && apt install wireguard
# Change the mode for files created in the shell to 0600
umask 077
# Create 'privatekey' file containing a new private key
wg genkey > privatekey
# Create 'publickey' file containing the corresponding public key
wg pubkey < privatekey > publickey

Create WireGuard configuration files using the generated keys.

On Machine 1, create /etc/wireguard/wg0.conf:

[Interface]
ListenPort = 51820
PrivateKey = <replace with 'privatekey' file content from Machine 1>

[Peer]
PublicKey = <replace with 'publickey' file content from Machine 2>
# IP ranges for which a peer will route traffic - Docker subnet on Machine 2
AllowedIPs = 10.200.2.0/24
# Public IP of Machine 2
Endpoint = 157.180.72.195:51820
# Periodically send keepalive packets to keep NAT/firewall mapping alive
PersistentKeepalive = 25

On Machine 2, create /etc/wireguard/wg0.conf:

[Interface]
ListenPort = 51820
PrivateKey = <replace with 'privatekey' file content from Machine 2>

[Peer]
PublicKey = <replace with 'publickey' file content from Machine 1>
# IP ranges for which a peer will route traffic - Docker subnet on Machine 1
AllowedIPs = 10.200.1.0/24
# Reachable endpoint of Machine 1
# Endpoint =
# Periodically send keepalive packets to keep NAT/firewall mapping alive
PersistentKeepalive = 25

Refer to the Unofficial WireGuard Documentation for more details on the configuration options.

Note that the Endpoint option could be omitted on one of the machines if the peer is not reachable from that machine. In my case, Machine 1 is behind NAT in my private homelab network which is not reachable from the remote Hetzner server (Machine 2). The bidirectional tunnel can still be established in this case but Machine 1 must initiate the connection.

If both of your machine are reachable from each other, you should specify the Endpoint option in both configs which will allow them to establish the connection without waiting for the other side to initiate it. If both of your machines are behind NAT, see NAT to NAT Connections for more information.

Note also that we don't set Address option in the configs because we don't want to assign any IP addresses to the WireGuard interfaces. We want the tunnel to only encapsulate and transfer packets from the multi-host bridge networks and don't want any end of it to be the destination for the packets.

As the key pairs are now specified in the configuration files, you can remove the privatekey and publickey files on both machines:

rm privatekey publickey

Now start the WireGuard interface wg0 on both machines:

wg-quick up wg0

Verify that the tunnel is up and running on any of the machines:

$ wg show
interface: wg0
  public key: 4P6scLYcHdgwU8tMkQYGjq6pu4KvrwKyKIg7JuP6E30=
  private key: (hidden)
  listening port: 51820

peer: 0WDgQ+XkHkODI+3xT4APiI9GJS7MvjGH6wtk+W57TgM=
  endpoint: 157.180.72.195:51820
  allowed ips: 10.200.2.0/24
  latest handshake: 12 seconds ago
  transfer: 124 B received, 624 B sent
  persistent keepalive: every 25 seconds

If you see the latest handshake time updating, it means the tunnel is working correctly.

Step 3: Configure IP routing

Docker daemon automatically enables IP forwarding in the kernel when it starts, so you don't need to manually configure net.ipv4.ip_forward with sysctl.

However, Docker blocks traffic between external interfaces and container networks by default for security. You need to explicitly allow WireGuard traffic from wg0 interface to reach your containers via the multi-host bridge interface. Docker uses iptables, so you can allow this traffic by adding a rule to the FORWARD chain before any other Docker-managed rules that would drop it. Luckily, Docker creates a special DOCKER-USER chain exactly for this purpose that the FORWARD chain jumps to before jumping to any other Docker-managed chains.

To create the required iptables rule, you need to find the bridge interface name for the multi-host network you created earlier. It's named br-<short-network-id>, where <short-network-id> is the first 12 characters of the network ID.

Add the iptables rule to allow traffic from wg0 to multi-host bridge on Machine 1:

$ docker network ls -f name=multi-host
NETWORK ID     NAME         DRIVER    SCOPE
661096b2a5d9   multi-host   bridge    local
$ iptables -I DOCKER-USER -i wg0 -o br-661096b2a5d9 -j ACCEPT

Add the iptables rule to allow traffic from wg0 to multi-host bridge on Machine 2:

$ docker network ls -f name=multi-host
NETWORK ID     NAME         DRIVER    SCOPE
48f808048e7c   multi-host   bridge    local
$ iptables -I DOCKER-USER -i wg0 -o br-48f808048e7c -j ACCEPT

The traffic the other way around (from multi-host bridge to wg0) is not blocked by Docker by default. But it still won't be able to make it through the tunnel. The reason is that Docker creates a MASQUERADE rule in the nat table for every bridge network with option com.docker.network.bridge.enable_ip_masquerade set to true (which is the default). In my case, the rule looks like this on Machine 1:

POSTROUTING -s 10.200.1.0/24 ! -o br-661096b2a5d9 -j MASQUERADE

This essentially configures NAT for all external traffic coming from containers which is necessary to allow them to access the internet and other external networks. However, it equally applies to the traffic going through the wg0 interface. It tries to masquerade the source IP address of the packets with the IP address of the wg0 interface and fails because the wg0 interface doesn't have an IP. This results in the packets being dropped.

You cloud assign an IP address to wg0 but this would cause the following unwanted side effects:

Containers from other Docker networks on the same machine could route through the tunnel to reach remote multi-host containers, violating Docker's network isolation model.
Remote containers would see all connections as coming from the wg0 IP instead of the actual container IPs.

Let's instead add another rule to the POSTROUTING chain in the nat table to skip masquerading for the traffic from the multi-host network going through the tunnel.

Run on Machine 1:

iptables -t nat -I POSTROUTING -s 10.200.1.0/24 -o wg0 -j RETURN

Run on Machine 2:

iptables -t nat -I POSTROUTING -s 10.200.2.0/24 -o wg0 -j RETURN

Step 4: Testing

Now you can finally run containers on both machines connected to their multi-host networks and test that they can communicate.

Run a whoami container on Machine 2 which listens on port 80 and replies with the OS information and HTTP request that it receives:

docker run -d --name whoami --network multi-host traefik/whoami

Get its IP address:

$ docker inspect -f "{{range .NetworkSettings.Networks}}{{.IPAddress}}{{end}}" whoami
10.200.2.2

Now fetch http://10.200.2.2 from inside a container on Machine 1.

Drum roll, please! 🥁

$ docker run -it --rm --network multi-host alpine/curl http://10.200.2.2
Hostname: bdb55fc9d9ae
IP: 127.0.0.1
IP: ::1
IP: 10.200.2.2
RemoteAddr: 10.200.1.2:37682
GET / HTTP/1.1
Host: 10.200.2.2
User-Agent: curl/8.14.1
Accept: */*

Yay, it works! The request came from the container 10.200.1.2 on Machine 1 and was served by the container 10.200.2.2 on Machine 2.

You can ping remote containers or use any other network protocols to communicate with them:

$ docker run -it --rm --network multi-host alpine:latest ping -c 3 10.200.2.2
PING 10.200.2.2 (10.200.2.2): 56 data bytes
64 bytes from 10.200.2.2: seq=0 ttl=62 time=301.294 ms
64 bytes from 10.200.2.2: seq=1 ttl=62 time=297.191 ms
64 bytes from 10.200.2.2: seq=2 ttl=62 time=297.285 ms

Both hosts have IPs assigned to the multi-host bridges, 10.200.1.1 and 10.200.2.1 respectively which should aslo be reachable from the containers or hosts on both machines.

You can see from the ping command the latency is quite high (~300 ms) in my case because the packets have to travel from Australia to Finland and back. You should take this into account when planning to run latency-sensitive applications across machines in different regions. As my friend Sergey once said, "sucks to be limited by the speed of light tbh".

Step 5: Make the configuration persistent

To ensure this setup survives reboots, you need to:

Persist iptables rules.
Automatically start the WireGuard interface on boot.

Persisting iptables rules

You can use the iptables-persistent package to save and restore iptables rules on boot. But a more reliable way would be to use PostUp and PostDown options in the WireGuard configs to automatically configure iptables when WireGuard starts/stops.

Append the following lines to the [Interface] section in /etc/wireguard/wg0.conf. Make sure to replace <network-id> with your actual Docker network ID from Step 3. The %i is replaced by WireGuard with the interface name (wg0).

On Machine 1:

[Interface]
...
PostUp = iptables -I DOCKER-USER -i %i -o br-<network-id> -j ACCEPT; iptables -t nat -I POSTROUTING -s 10.200.1.0/24 -o %i -j RETURN
PostDown = iptables -D DOCKER-USER -i %i -o br-<network-id> -j ACCEPT; iptables -t nat -D POSTROUTING -s 10.200.1.0/24 -o %i -j RETURN

On Machine 2:

[Interface]
...
PostUp = iptables -I DOCKER-USER -i %i -o br-<network-id> -j ACCEPT; iptables -t nat -I POSTROUTING -s 10.200.2.0/24 -o %i -j RETURN
PostDown = iptables -D DOCKER-USER -i %i -o br-<network-id> -j ACCEPT; iptables -t nat -D POSTROUTING -s 10.200.2.0/24 -o %i -j RETURN

Start WireGuard on boot

The wireguard-tools package provides a convenient systemd service to manage WireGuard interfaces. Since our iptables rules should have a priority over Docker's rules, WireGuard must start after Docker.

Create a systemd drop-in configuration for this:

mkdir -p /etc/systemd/system/wg-quick@wg0.service.d/
cat > /etc/systemd/system/wg-quick@wg0.service.d/docker-dependency.conf << EOF
[Unit]
After=docker.service
Requires=docker.service
EOF

Then enable the WireGuard service to start on boot:

systemctl enable wg-quick@wg0.service
systemctl daemon-reload
# Verify the unit includes the drop-in configuration.
systemctl cat wg-quick@wg0.service

Scaling beyond two machines and limitations

//Adding a third machine requires updating configs on all existing machines. This gets tedious fast... //WireGuard mesh and challenges to manually manage key pairs and distribute configs //Requirements for NAT traversal: at least one machine in each pair must be reachable by the other. The wireguard will fail to establish a connection if both machines are behind NAT without special tricks that are beyond the scope of this post. DNS resolution for container names across machines is not covered here, but you can use a service discovery tool like Consul.

Automating with Uncloud

//I built Uncloud to handle all the heavy lifting automatically.

You can initialise a cluster of machines by running the following commands:

uc machine init user@machine1-ip
uc machine add user@machine2-ip
...
uc machine add user@machineN-ip

//This will create uncloud Docker bridge network on each machine with 10.210.N.0/24 subnet by default and set up //WireGuard mesh network between them and make persistent across reboots.

//Mention embedded DNS that resolves container IPs by their service names and multi-machine Docker Compose support.

Alternative solutions

//I wanted to explore only lightweight solutions for Docker so not talking about Kubernetes and a numerous CNI //drivers. Let's leave this beast for another time.

Docker Swarm overlay network

Flannel

Tailscale

//Not a generic site-to-site VPN, so the recommended approach is to use Tailscale on the container level. This way a //container that needs to talk across machines is configured as a Tailscale machine so it can connect to other Tailscale //machines. Maybe the subnet router feature can be used to connect Docker networks in a similar I described here, but //I haven't tested it.

Conclusion

//Summarise what we've done.?

If you like this article and my work, you can follow me on X @psviderski.
